Home>Products>Thrust Roller Bearings>89322 M SKF Thrust Roller Bearings
English
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

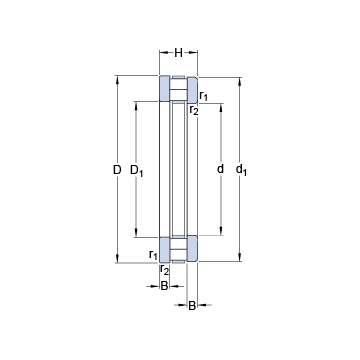

| Bearing number | 89322 M | K89322 | K89322-M |
| Size (mm) | 190x110x48(mm) | ||
| Brand | SKF | NTN | NBS |
| Bore Diameter (mm) | 190(mm) | 110,000(mm) | 110(mm) |
| Outer Diameter (mm) | 110(mm) | 190,000(mm) | 190(mm) |
| Width (mm) | 48(mm) | ||
| d | 110 mm 4.3307 in | 110,000 mm 4.3307 in | 110 mm 4.3307 in |
| D | 190 mm 7.4803 in | 190,000 mm 7.4803 in | 190 mm 7.4803 in |
| H | 48 mm 1.8898 in | ||
| d1 | 190 mm 7.4803 in | ||
| D1 | 113 mm 4.4488 in | ||
| B | 16.5 mm 0.6496 in | ||
| r1,2 - min. | 2 mm 0.0787 in | ||
| da - min. | 186 mm 7.3228 in | ||
| Da - max. | 120 mm 4.7244 in | ||
| ra - max. | 2 mm 0.0787 in | ||
| Basic dynamic load rating - C | 400 kN | ||
| Basic static load rating - C0 | 1830 kN | ||
| Fatigue load limit - Pu | 173 kN | ||
| Reference speed | 850 r/min | ||
| Limiting speed | 1700 r/min |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
