Home>Products>Thrust Roller Bearings>29238E NACHI Thrust Roller Bearings
English
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

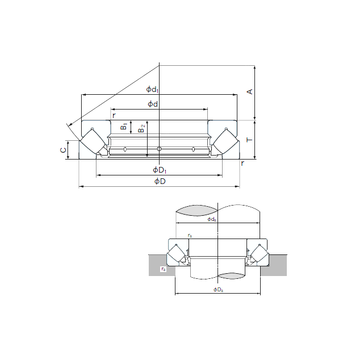

| Bearing number | 29238E | 29238-E1-MB | 29238 |
| Size (mm) | 190x270x48(mm) | 190x270x48(mm) | 190x270x48(mm) |
| Brand | NACHI | FAG | NTN |
| Bore Diameter (mm) | 190(mm) | 190(mm) | 190(mm) |
| Outer Diameter (mm) | 270(mm) | 270(mm) | 270(mm) |
| Width (mm) | 48(mm) | 48(mm) | 48(mm) |
| d | 190 mm 7.4803 in | 190 mm 7.4803 in | 190 mm 7.4803 in |
| D | 270 mm 10.6299 in | 270 mm 10.6299 in | 270 mm 10.6299 in |
| T | 48 mm 1.8898 in | 48 mm 1.8898 in | 48 mm 1.8898 in |
| d1 | 262 mm 10.315 in | 262 mm 10.315 in | |
| r min. | 2 mm 0.0787 in | 2 mm 0.0787 in | |
| A | 104 mm 4.0945 in | 103 mm 4.0551 in | 104 mm 4.0945 in |
| B1 | 15 mm 0.5906 in | 15 mm 0.5906 in | |
| B2 | 45 mm 1.7717 in | ||
| C | 24 mm 0.9449 in | 24 mm 0.9449 in | |
| D1 | 223 mm 8.7795 in | 223 mm 8.7795 in | |
| da min. | 225 mm 8.8583 in | 225 mm 8.8583 in | |
| Da max. | 245 mm 9.6457 in | 245 mm 9.6457 in | |
| ra max. | 2 mm 0.0787 in | 2 mm 0.0787 in | |
| Weight | 8.50 Kg | 8,8 Kg | |
| Basic dynamic load rating (C) | 540 kN | 530 kN | |
| Basic static load rating (C0) | 2300 kN | 2 230 kN |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
