Product Description
 |  |  | |
| Bearing number | 29480E | 29480-E1-MB | 29480 |
| Size (mm) | 400x710x185(mm) | 400x710x185(mm) | 400x710x185(mm) |
| Brand | NACHI | FAG | NTN |
| Bore Diameter (mm) | 400(mm) | 400(mm) | 400(mm) |
| Outer Diameter (mm) | 710(mm) | 710(mm) | 710(mm) |
| Width (mm) | 185(mm) | 185(mm) | 185(mm) |

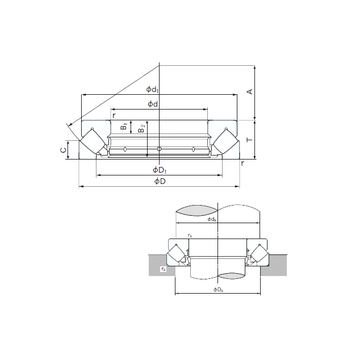

| d | 400 mm 15.748 in | 400 mm 15.748 in | 400 mm 15.748 in |
| D | 710 mm 27.9528 in | 710 mm 27.9528 in | 710 mm 27.9528 in |
| T | 185 mm 7.2835 in | 185 mm 7.2835 in | 185 mm 7.2835 in |
| d1 | 680 mm 26.7717 in | 680 mm 26.7717 in | |
| r min. | 7.5 mm 0.2953 in | 7,5 mm 0.2953 in | |
| A | 236 mm 9.2913 in | 234 mm 9.2126 in | 236 mm 9.2913 in |
| B1 | 67 mm 2.6378 in | 67 mm 2.6378 in | |
| B2 | 178 mm 7.0079 in | ||
| C | 89 mm 3.5039 in | 89 mm 3.5039 in | |
| D1 | 534 mm 21.0236 in | 534 mm 21.0236 in | |
| da min. | 540 mm 21.2599 in | 540 mm 21.2599 in | |
| Da max. | 610 mm 24.0158 in | 610 mm 24.0158 in | |
| ra max. | 6 mm 0.2362 in | 6 mm 0.2362 in | |
| Weight | 314 Kg | 321 Kg | |
| Basic dynamic load rating (C) | 5850 kN | 5 450 kN | |
| Basic static load rating (C0) | 25000 kN | 22 100 kN |
